Logistics-Heavy-Forklifts-HNF-Series-12t-50t

01 Logistics Heavy Forklifts HNF Series 12t 50t
01 Logistics Heavy Forklifts
HNF Series 12t-50t
02 Logistics Heavy Forklifts HNF Series 12t 50t
02 Logistics Heavy Forklifts
HNF Series 12t-50t
03 Logistics Heavy Forklifts HNF Series 12t 15t
03 Logistics Heavy Forklifts
HNF Series 12t-15t

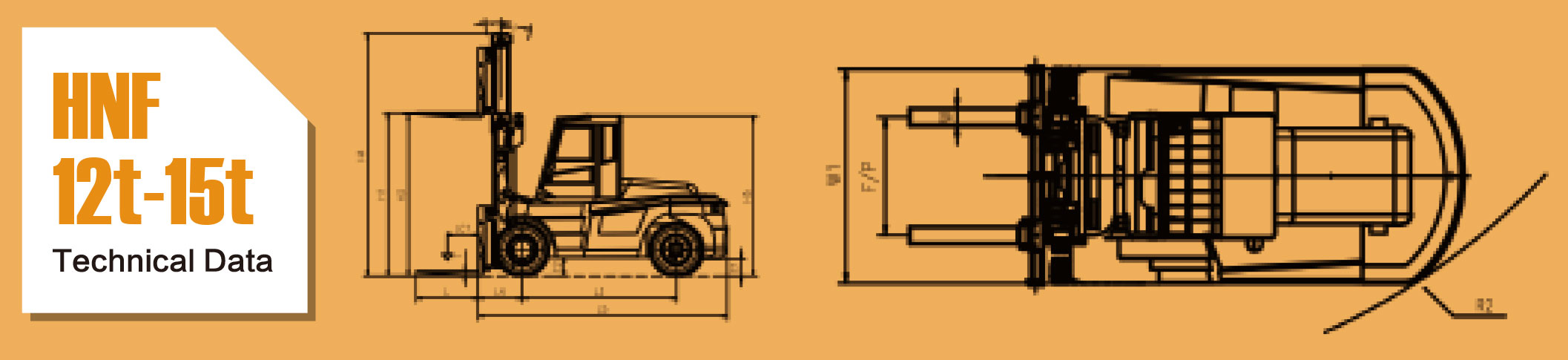

03 Logistics Heavy Forklifts HNF Series 12t 15t Technical Datas
03 Logistics Heavy Forklifts
HNF Series 12t-15t Technical Datas

Item Description Unit Design Value
HNF-120 HNF-135 HNF-150S
Feature Rated Load Q(t) 12 13.5 15
Load Center c(mm) 600 600 600
Wheelbase y(mm) 3000 3000 3000
Weight Weight kgs 18000 19000 19500
Wheel Chassis Tire Specifications: Front   10.00-20-18PR 11.00-20-18PR 12.00-20-16PR
Tire Specifications: Rear   10.00-20-18PR 11.00-20-18PR 11.00-20-16PR
Wheels, Qty, Front/Rear (X-Drive Wheels)   4/2 4/2 4/2
Wheel Distance: Front b10(mm) 1650 1677 1740
Wheel Distance: Rear b11(mm) 1970 2013 2013
Basic Dimension Front/Back Inclination Angle of Mast/Fork Rack
Degree(°) 6/12 6/12 6/12
Height of Mast when Retracted
h1(mm) 3100 3100 3140
Standard Lifting Height h3(mm) 3000 3000 3000
Max. Lifting Height h4(mm) 4600 4600 4640
Overhead Guard Height (Cab Height) h6(mm) 3000 3000 3040
Total Length (including Fork Length) l1(mm) 6055 6055 6055
Distance from Vertical Front Surface of Fork to Rear End of Vehicle l2(mm) 4855 4855 4855
Total Width b1/b2(mm) 2250 2250 2250
Fork Sizes s/e(mm) 1200*180*90 1200*180*90 1200*180*90
Fork Frame Width b3(mm) 2200 2200 2200
Min. Ground Clearance under Mast (Full Load) m1(mm) 225 225 225
Min. Ground Clearance of Center of Wheelbase (Full Load) m2(mm) 350 350 350
Min. Turning Radius Wa(mm) 4450 4450 4450
Performances Operating Speed (Full Load/No Load) km/h 23/26 23/26 23/26
Max. Lifting Speed (Full Load/No Load) mm/s 220/270 220/270 205/255
Max. Descent Speed (Full Load/No Load) mm/s 450/300 450/300 435/285
Traction kN 90 90 90
Gradeability (Full Load/No Load) % 20/22 20/22 20/22
Service Brake   Hydraulic
Clamp Disc Type
Hydraulic
Clamp Disc Type
Hydraulic
Clamp Disc Type
Internal
Combustion
Engine
Brand/Model Option #1 China Weichai China Weichai China Weichai
YYC6J150-T301 YYC6J150-T301 YYC6J150-T301
Option #2 Dongfeng Cummins Dongfeng Cummins Dongfeng Cummins
6BT5.9-C130 6BT5.9-C130 6BT5.9-C130
Option #3 Dongfeng Cummins Dongfeng Cummins Dongfeng Cummins
QSB4.5-C130 III QSB4.5-C130 III QSB4.5-C130 III
Cylinder No. 6/4/6 6/4/6 6/4
Others Transmission Gear Number (Front/Rear)   2/2 2/2 2/2
Attachments Working Pressure MPa 16 16 16
Amount of Oil for Attachments L/min 40 40 40
Note: Due to technical improvements, the datas may not match the products. If there is any discrepancy, please refer to the products, that is, the above datas are subject to change without prior notice.
