       RPM supplies Logistics Heavy Forklifts, Cranes, Engineering Loaders with good prices/performances ratio.


Logistics-Heavy-Forklifts-HNF-Series-40t-45t

09 Logistics Heavy Forklifts HNF Series 40t 45t
09 Logistics Heavy Forklifts
HNF Series 40t-45t

-
10 Logistics Heavy Forklift HNF Series 40t 45t with Container Reach Spreader
10 Logistics Heavy Forklift
HNF Series 40t 45t

with Container Reach Spreader

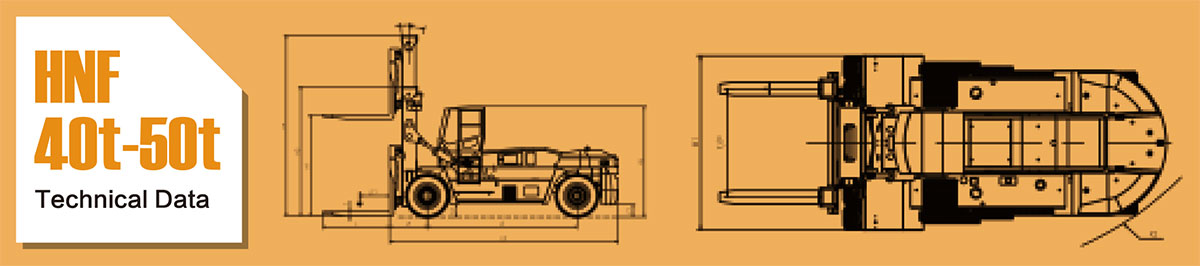

10 Logistics Heavy Forklifts HNF Series 40t 50t Technical Datas
10 Logistics Heavy Forklifts
HNF Series 40t-50t

Technical Datas
Item Description Unit Design Value
HNF-400 HNF-450 HNF-500
Feature Rated Load Q(t) 40 45 50
Load Center c(mm) 1200 1200 1200
Wheelbase y(mm) 5000 5500 6000
Weight Weight kgs 51000 53000 60000
Wheel Chassis Tire Specifications: Front   18.00-25-40PR 18.00-25-40PR 18.00-25-40PR
Tire Specifications: Rear   18.00-25-40PR 18.00-25-40PR 18.00-25-40PR
Wheels, Qty, Front/Rear (X-Drive Wheels)   4/2 4/2 4/2
Wheel Distance: Front b10(mm) 3030 3030 3030
Wheel Distance: Rear b11(mm) 2786 2786 2786
Basic Dimension Front/Back Inclination Angle of Mast/Fork Rack
Degree(°) 5/10 5/10 5/10
Height of Mast when Retracted
h1(mm) 4625 4625 5050
Standard Lifting Height h3(mm) 4000 4000 4000
Max. Lifting Height h4(mm) 6560 6560 6975
Overhead Guard Height (Cab Height) h6(mm) 3900 3900 3900
Total Length (including Fork Length) l1(mm) 10100 10600 11200
Distance from Vertical Front Surface of Fork
to Rear End of Vehicle
l2(mm) 8000 8500
9000
Total Width b1/b2(mm) 4160 4160 4160
Fork Sizes s/e(mm) 2400*300*135 2400*300*135 2400*300*150
Fork Frame Width b3(mm) 3400 3400 3400
Min. Ground Clearance under Mast (Full Load) m1(mm) 300 300 300
Min. Ground Clearance of Center of Wheelbase (Full Load) m2(mm) 460 460 460
Min. Turning Radius Wa(mm) 8000 8000 8500
Performances Operating Speed (Full Load/No Load) km/h 22/25 22/25 22/24
Max. Lifting Speed (Full Load/No Load) mm/s 200/250 200/250 150/200
Max. Descent Speed (Full Load/No Load) mm/s 430/330 430/330 400/300
Traction kN 250 250 250
Gradeability (Full Load/No Load) % 25 25 25
Service Brake   Oil-Cooled Multiple Wet Disc Type Oil-Cooled Multiple Wet Disc Type Oil-Cooled Multiple Wet Disc Type
Internal
Combustion
Engine
Brand/Model Option #1 Xian Cummins Xian Cummins Xian Cummins
QSM11-C335 III QSM11-C335 III QSM11-C335 III
Cylinder No. 6 6 6
Others Transmission Gear Number (Front/Rear)   Torque Convertor Torque Convertor Torque Convertor
Note: Due to technical improvements, the datas may not match the products. If there is any discrepancy, please refer to the products, that is, the above datas are subject to change without prior notice.
