       RPM supplies Logistics Heavy Forklifts, Cranes, Engineering Loaders with good prices/performances ratio.


Telescopic-Crane-Loader-Boom-Hoisting-Machine-HNT-25t-110t

13 Telescopic Crane Loader Boom Hoisting Machine HNT 110
13 Telescopic Crane Loader
Boom Hoisting Machine HNT 110

-

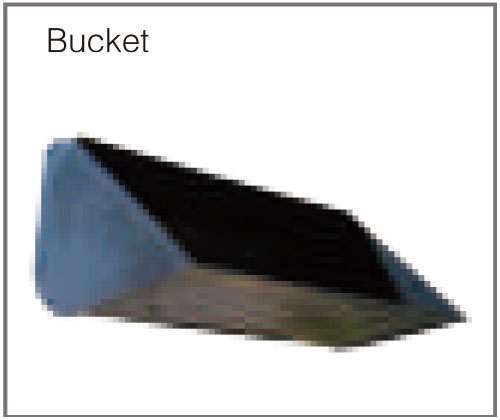

14 Telescopic Crane Loader Boom Hoisting Machine HNT 110 Bucket
14 Telescopic Crane Loader
Boom Hoisting Machine HNT 110
Bucket

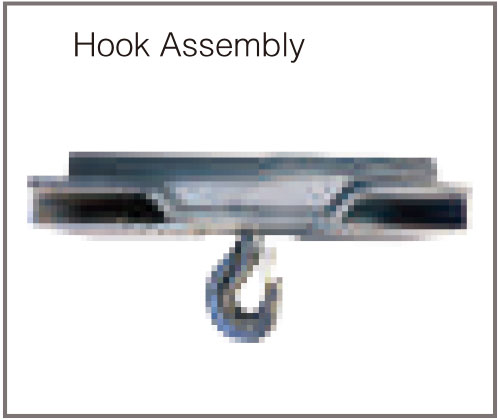

15 Telescopic Crane Loader Boom Hoisting Machine HNT 110 Hook Assembly
15 Telescopic Crane Loader
Boom Hoisting Machine HNT 110
Hook Assembly
16 Telescopic Crane Loader Boom Hoisting Machine HNT 110 Aerial Working Platform
16 Telescopic Crane Loader
Boom Hoisting Machine HNT 110
Aerial Working Platform

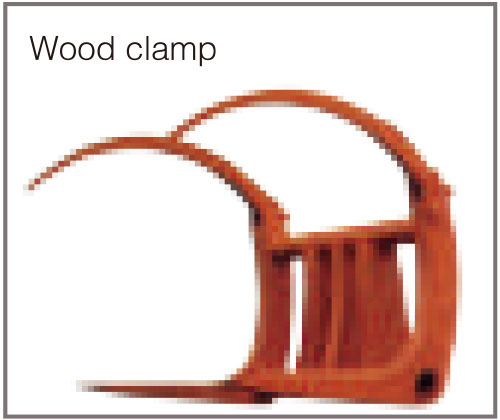

17 Telescopic Crane Loader Boom Hoisting Machine HNT 110 Wood Clamp
17 Telescopic Crane Loader
Boom Hoisting Machine HNT 110
Wood Clamp

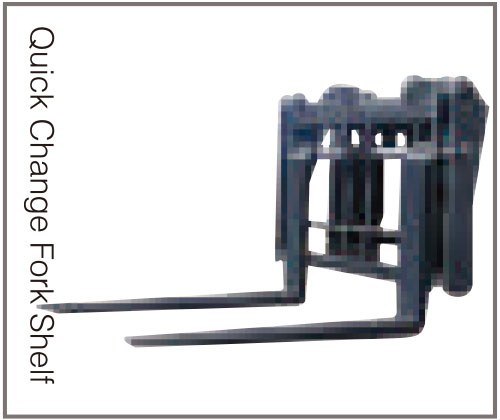

18 Telescopic Crane Loader Boom Hoisting Machine HNT 110 Quick Change Fork
18 Telescopic Crane Loader
Boom Hoisting Machine HNT 110
Quick Change Fork

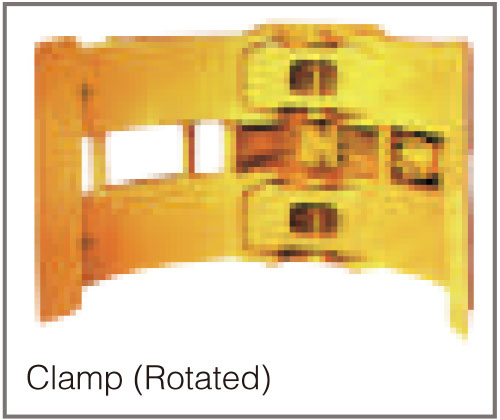

19 Telescopic Crane Loader Boom Hoisting Machine HNT 110 Rotable Clamp
19 Telescopic Crane Loader
Boom Hoisting Machine HNT 110
Rotable Clamp
20 Telescopic Crane Loader Boom Hoisting Machine HNT 110 Hay Fork for Forage Fodder Stacking
20 Telescopic Crane Loader
Boom Hoisting Machine HNT 110
Hay Fork for Forage Fodder Stacking

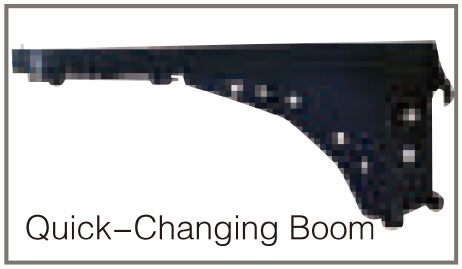

21 Telescopic Crane Loader Boom Hoisting Machine HNT 110 Quick Changing Boom
21 Telescopic Crane Loader
Boom Hoisting Machine HNT 110
Quick Changing Boom
HNT-110 telescopic boom hoisting machine has wide adaptability and high efficiency. It integrates the functions of forklift, loader and crane. It has excellent off-road performance and a wide range of use. It has an enhanced working device design and stable quality.
The chassis of the HNT-110 telescopic boom hoist adopts front-wheel drive, rear-wheel steering, and rigid suspension; the transmission adopts two front and rear hydraulic torque variable transmission gearboxes, full hydraulic power steering, and the brake is air-push-oil-drum brake; The working device is composed of three sections of quadrilateral telescopic booms, a boom quick-change device and a hook. This machine can be used for lifting container stone slabs, and can also be used as a general crane. It can be widely used in factories, wharfs, freight yards, forest farms, building materials, warehouses, logistics and other industries. It is a wide adaptability and high efficiency loading and unloading machinery. .
22 Telescopic Forklifts Boom Hoisting Machine Crane Loader Logistics Forklifts
22 Telescopic Forklifts
Boom Hoisting Machine
Crane Loader
Logistics Forklifts
Telescopic Forklift:
HNT series telescopic forklift is a new type of loading and unloading machinery, it is equipped with forks and side shifting working devices, suitable for lifting and stacking boxes of goods.
It can also be engaged in high-altitude operations such as the installation and maintenance of road lighting equipment and the installation and laying of various underground pipelines (such as water pipes, gas pipes, etc.) in the construction of municipal projects, and is widely used in factories, stations, docks, freight yards, posts and telecommunications, forest farms, building materials, warehouses and other places. HNT series telescopic forklifts are a kind of loading and unloading machinery with wide adaptability and high efficiency.
23 Telescopic Forklifts Boom Hoisting Machine Crane Loader Logistics Forklifts
23 Telescopic Forklifts
Boom Hoisting Machine
Crane Loader
Logistics Forklifts
1. It adopts well-known brand diesel engine, which has strong power, energy saving and environmental protection, and meets the requirements of efficient operations.
2. Double turbo hydraulic torque converter with stepless speed change; single lever control speed change system, front and rear two gears, easier to operate.
3. The use of a double-pump confluence working hydraulic system greatly reduces fuel consumption and energy consumption.
4. The full hydraulic coaxial flow amplification steering system is adopted, the turning radius of the rear steering axle is small, and the steering is light and flexible.
5. Adopt front-wheel drive, rigid suspension, rear axle steering drive structure; four-wheel drive function can be realized; front axle spiral bevel gear and wheel side planetary gear decelerate and increase torque, the load capacity is large.
6. The integrated frame can provide good rigidity and strength to ensure the high reliability of the chassis of this forklift.
7. The operating device is a two-section quadrilateral telescopic working arm, and the telescopic arm adopts a large cross-section, high-strength quadrilateral structure.
8. This forklift is equipped with forks as standard, and buckets, fork sleeves and aerial work platforms are optional. Standard quick-change shelves, adjustable distance shelves and side-shift shelves are optional. Realize many kinds of uses.
9. It adopts adjustable steering gear, aviation seat, pilot valve to control the distribution valve and working device oil circuit, the operation is light and flexible, and the sitting feeling is more comfortable.
10. The maintenance-free battery is used, and the cab is equipped with fans, radios, heating and cooling air-conditioning, making it more comfortable and reliable to work.
11. The overall shape of the whole machine is atmospheric, beautiful and smooth; the luxurious wide-view cab has low noise and good sealing, which is convenient for the driver to observe around.
12. This series of forklift is equipped with an electronic handbrake function as standard. Compared with the flexible shaft handbrake, it has greatly improved operability, aesthetics, and sensitivity.
13. This series of forklift is equipped with an electronic bridge release function as standard, which is more convenient and simple to operate than the manual flexible shaft type bridge release mechanism. The performance has also been greatly improved. It can realize the switch of two-wheels drive and four-wheels drive function, which can better adapt to different road conditions to reduce the degree of tire wear and better protect the tires.
14. The parts are localized, standardized, cost-effective, and the accessories are universal and easy to purchase, and the daily maintenance is simple and quick.
24 Telescopic Forklifts Boom Hoisting Machine Crane Loader Logistics Forklifts
24 Telescopic Forklifts
Boom Hoisting Machine
Crane Loader
Logistics Forklifts

-

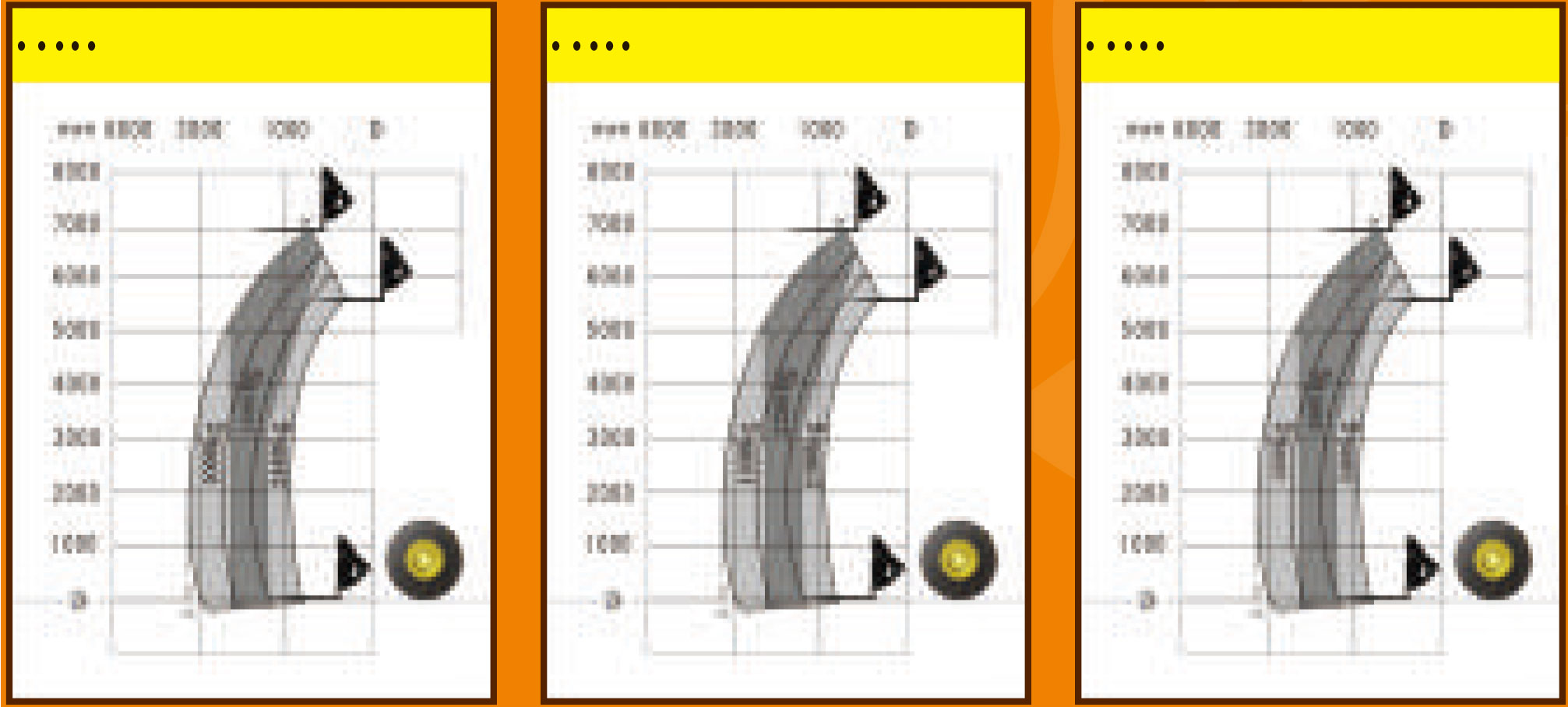

25 Telescopic Forklifts Boom Hoisting Machine Crane Loader Logistics Forklifts Lift Load Curves
25 Telescopic Forklifts
Boom Hoisting Machine
Crane Loader
Logistics Forklifts
Lift Load Curves

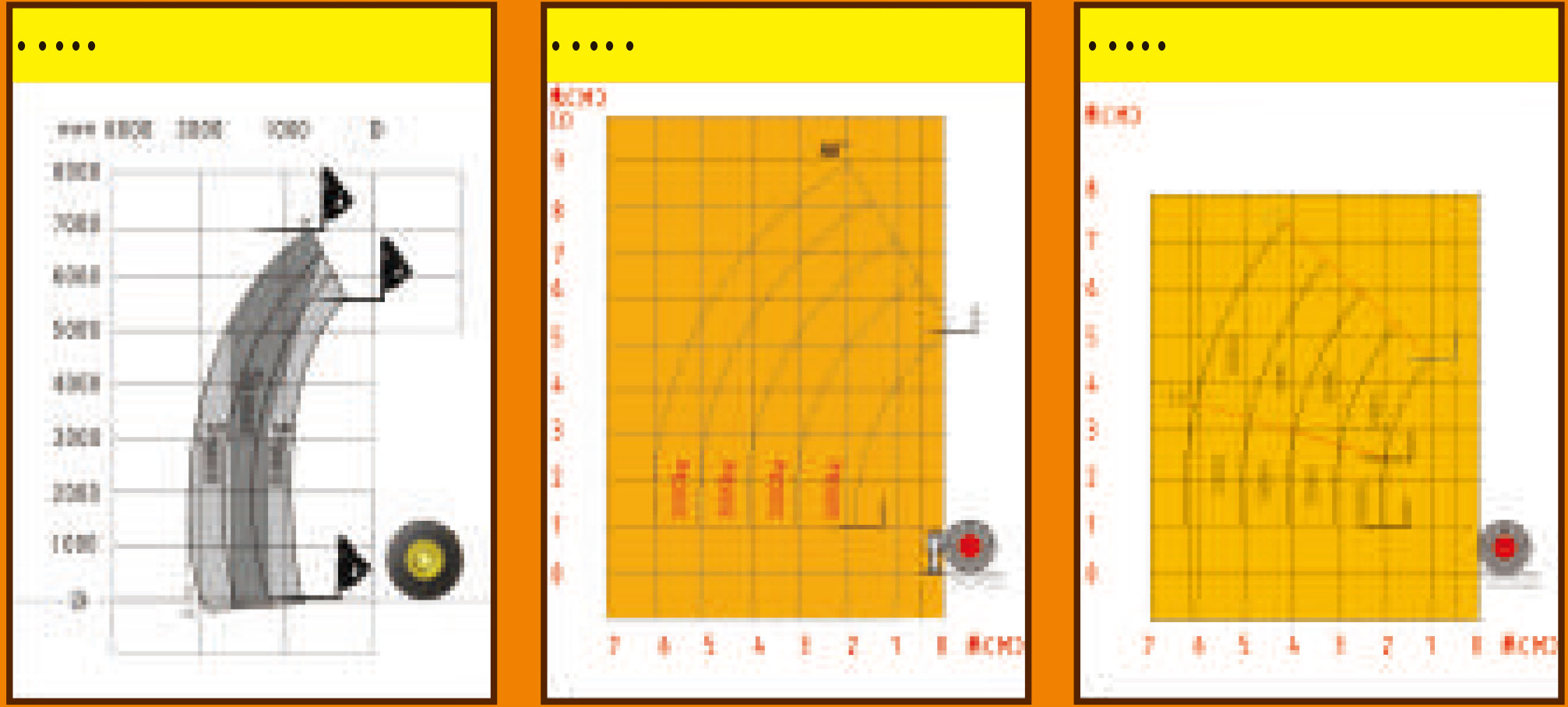

26 Telescopic Forklifts Boom Hoisting Machine Crane Loader Logistics Forklifts Lift Load Curves
26 Telescopic Forklifts
Boom Hoisting Machine
Crane Loader
Logistics Forklifts
Lift Load Curves

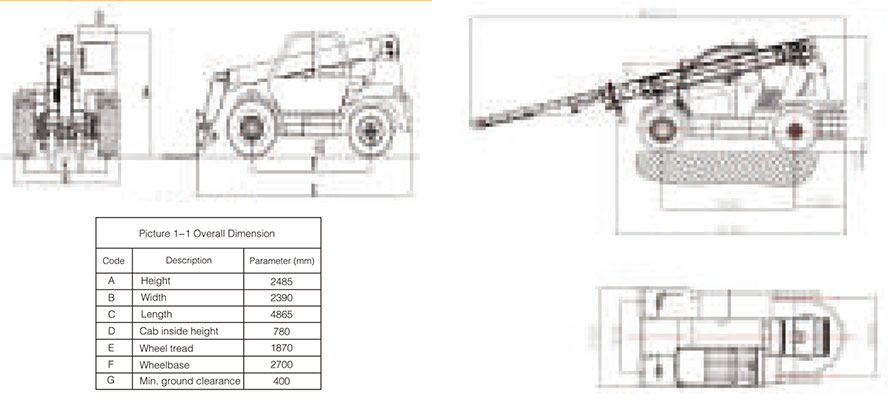

27 Telescopic Forklifts Boom Hoisting Machine Crane Loader Logistics Forklifts Dimensions
27 Telescopic Forklifts
Boom Hoisting Machine
Crane Loader
Logistics Forklifts
Dimensions


Item Unit Deviation
Allowed
HNT25-4 HNT30-4 HNT35-4 HNT40-4 HNT50-2 HNT50H
Basic
Parameters
Rated Lifting Capacity kgs - 2500 3000 3500 4000 5000 5000
Load Center Distance mm - 500 500 500 500 500 500
Lifting Weight at Maximum Outreach kgs - 1000 1250 1550 1800 1500 2000
Max. Operating Height of Basic Boom mm ±1.5% 4850 4850 4850 4850 4500 5300
Max. Working Height of Fully Outreached Boom mm ±1.5% 7000 7000 7000 7000 7300 8800
Max. Outreach mm ±1.5% 3350 3350 3350 3350 5700 5470
Min. Outreach mm ±1.5% 930 930 930 930 1500 1270
Min. Ground Clearance mm ±1.5% 400 400 400 400 310 310
Min. Turning Radius (Outer Wheel Center) mm ≤105% 6200 6200 6200 6200
6800 6800
Luffing Elevation Angle Max. Elevation Angle of Boom ° ±1.0 60 60 60 60 43 60
Min. Elevation Angle of Boom ° ±1.0 -11 -11 -11 -11 -14 -12
Self Weight kgs ±5% 8200 8600 9000 9440 13000 13000
Overall Sizes Length (with Fork) mm ±2% 5730 5730 5730 5730 6288 5900
Width mm ±2% 2390 2390 2390 2390 2300 2350
Height mm ±2% 2485 2485 2485 2485 2715 2655
Wheel Distance (Front/Rear) mm ±1% 1870 1870 1870 1870 1638/1845 1638/1845
Axises Distance mm ±1% 2700 2700 2700 2700 2988 2988
Engine's Rated Power/Rated Speed kW/r/lmin - 60/2000 60/2000 60/2000 60/2000 74/2200 74/2200
Transmission System Max. Driving Speed without Load km/h ±10% 30 30 30 30 25 25
  Gradeability % - ≥30% ≥30% ≥30% ≥30% ≥20% ≥20%
Tyre Front Wheel (2 pcs) - - 16/70-24 16/70-24 16/70-24 16/70-24 11.00-20 11.00-20
  Rear Wheels (2 pcs) - - 10.00-20-16 10.00-20-16 10.00-20-16 10.00-20-16 9.00-20 9.00-20
Engine Dongfeng Cummins - National 2 4BTA8.9-C80 II 4BTA8.9-C80 II 4BTA8.9-C80 II 4BTA8.9-C80 II 4BTA8.9-C100 II 4BTA8.9-C100 II
- National 3 QSB3.9-C80 QSB3.9-C80 QSB3.9-C80 QSB3.9-C80 QSB3.9-C100 QSB3.9-C100

Parameter Configuration of Telescopic Boom Hoisting Machine HNT-110 with Spreader

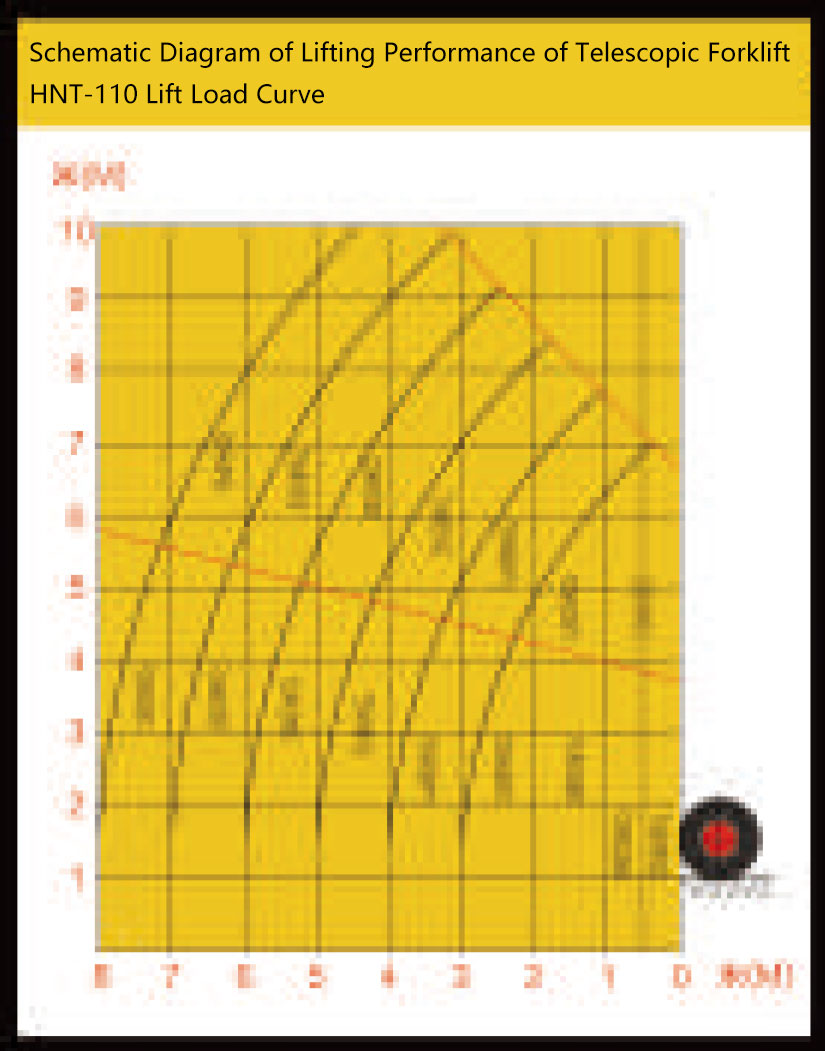

Item Parameter Remark 28 Schematic Diagram of Lifting Performance of Telescopic Forklift HNT 110 Lift Load Curve
28 Schematic Diagram of
Lifting Performance of
Telescopic Forklift HNT 110
Lift Load Curve
Rated Load, kgs ≤11000
Operating Weight of Whole Machine, kgs 13000
Max. Lifting Height of Main Hook, mm 7605 Distance from the main hook to the ground
Max. Lifting Height of Full Boom, mm 10300 Front hook
Axises Distance, mm 2988
Distance of Front Wheels, mm 1638
Distance of Rear Wheels, mm 1845
Min. Ground Clearance, mm 310
Length of Whole Machine, mm 5288 Exclude hook boom
Max. Width of Whole machine, mm 2350
Max. Height of Whole Machine, mm 2715
Cab Height, mm
2400
Length of Rear Overhang, mm 1055
Max. Extension Distance of Main Hook, mm 4800 Horizontal
Max. Extension distance of Full Arm, mm 7900 Horizontal
Tilt Angle of Hook Boom, up/down, ° 22°/24°
Tilt Angle of Big Boom, up/down, ° -14°/43°
Min. Turning Radius, mm 6800
Max. Climbing Ability, ° ≥20%
Max. Driving Speed, km/h 25
Front Wheel 11.00-20
Rear Wheel 9.00-20
